SAB Acoustic Premium Baffle
SAB Acoustic Premium Baffle
Opis produktu

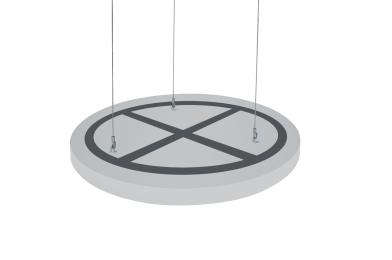

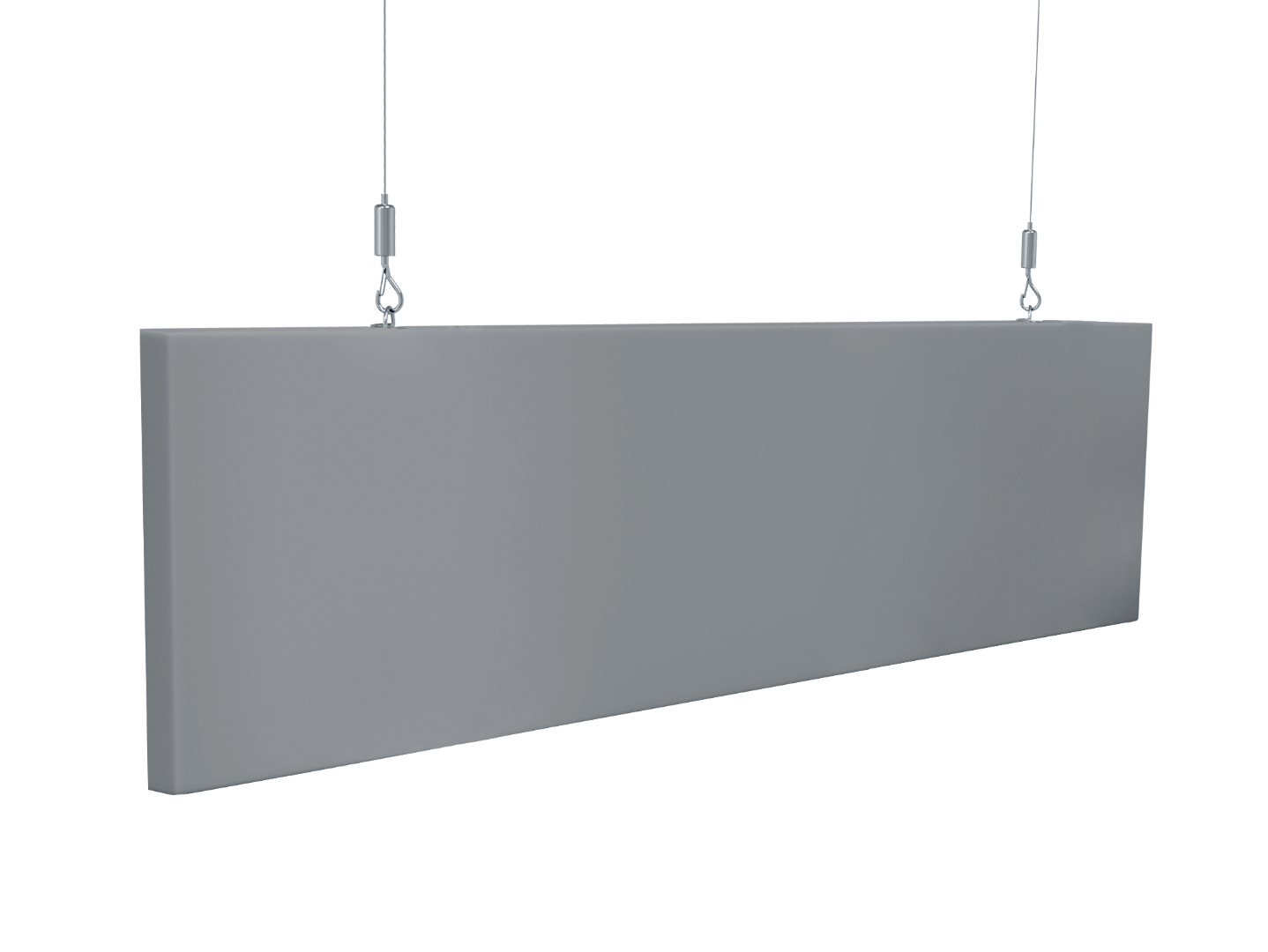

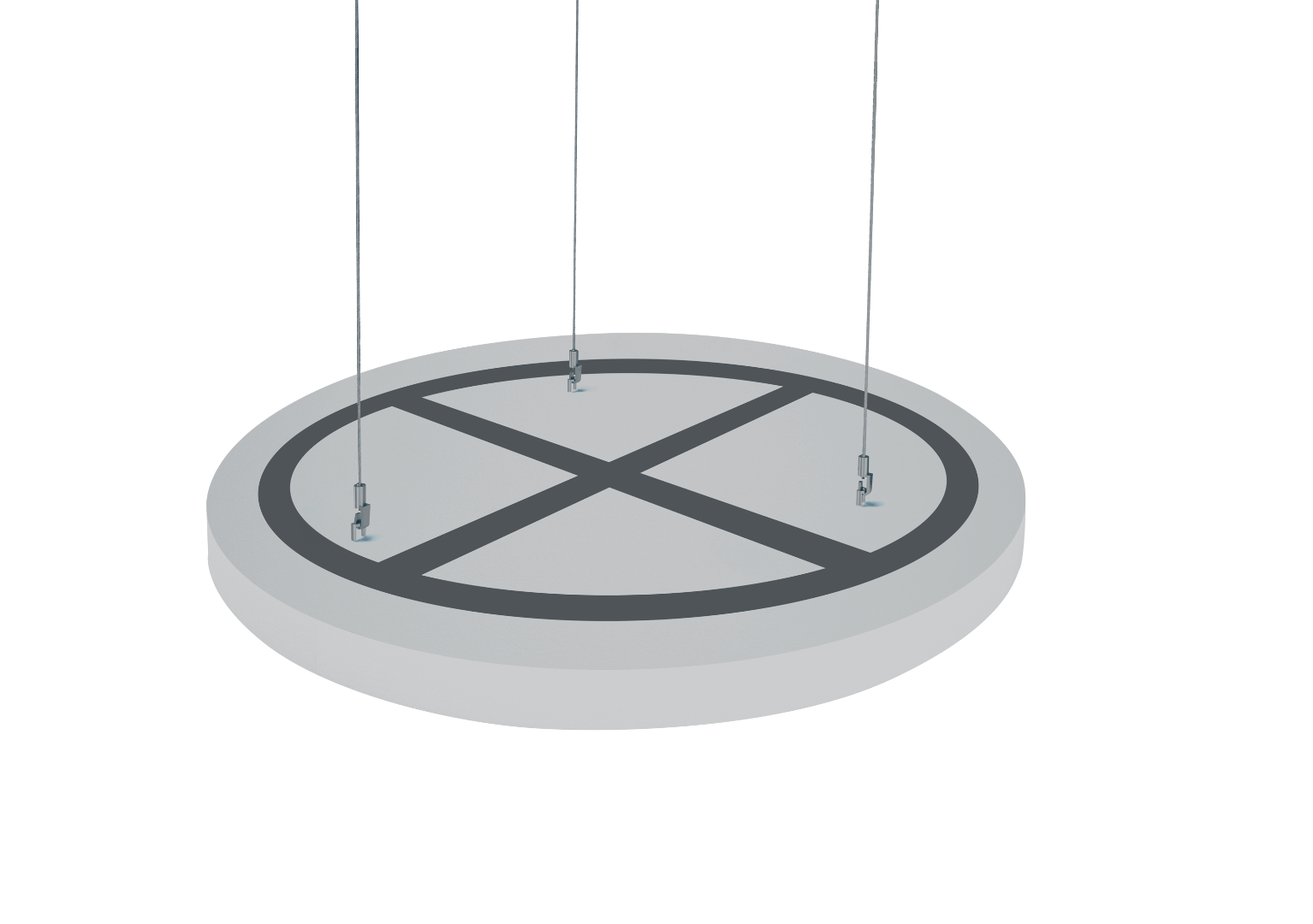

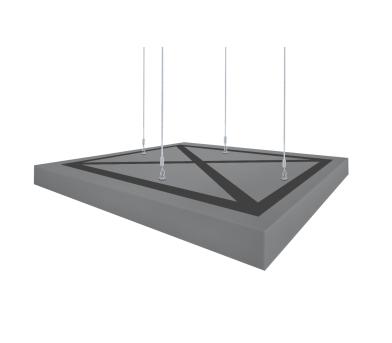

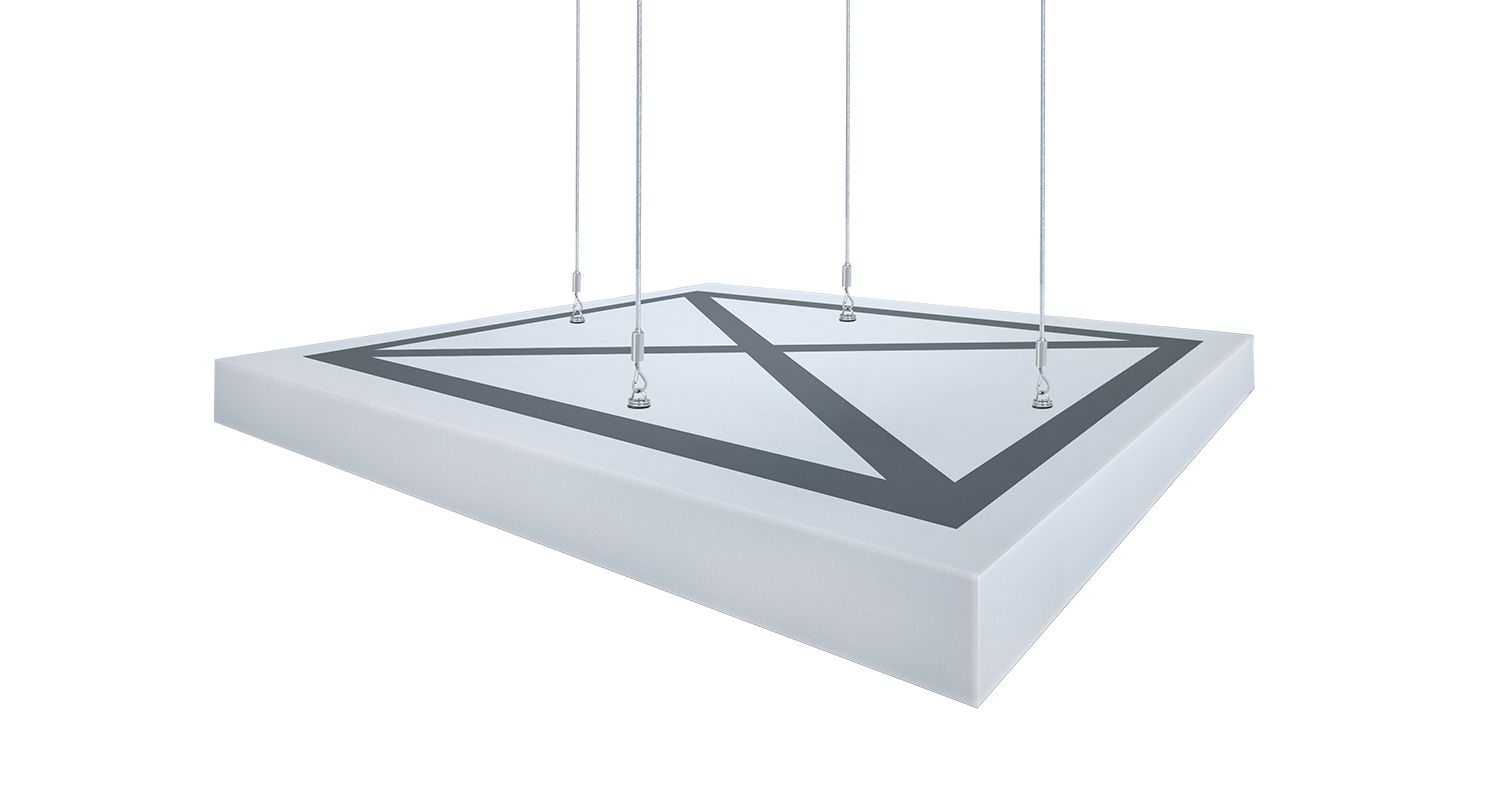

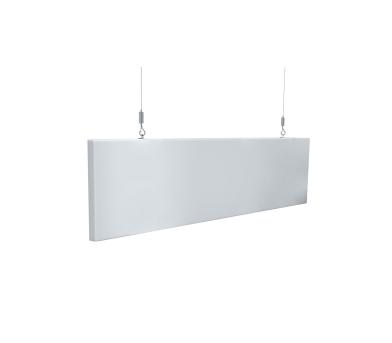

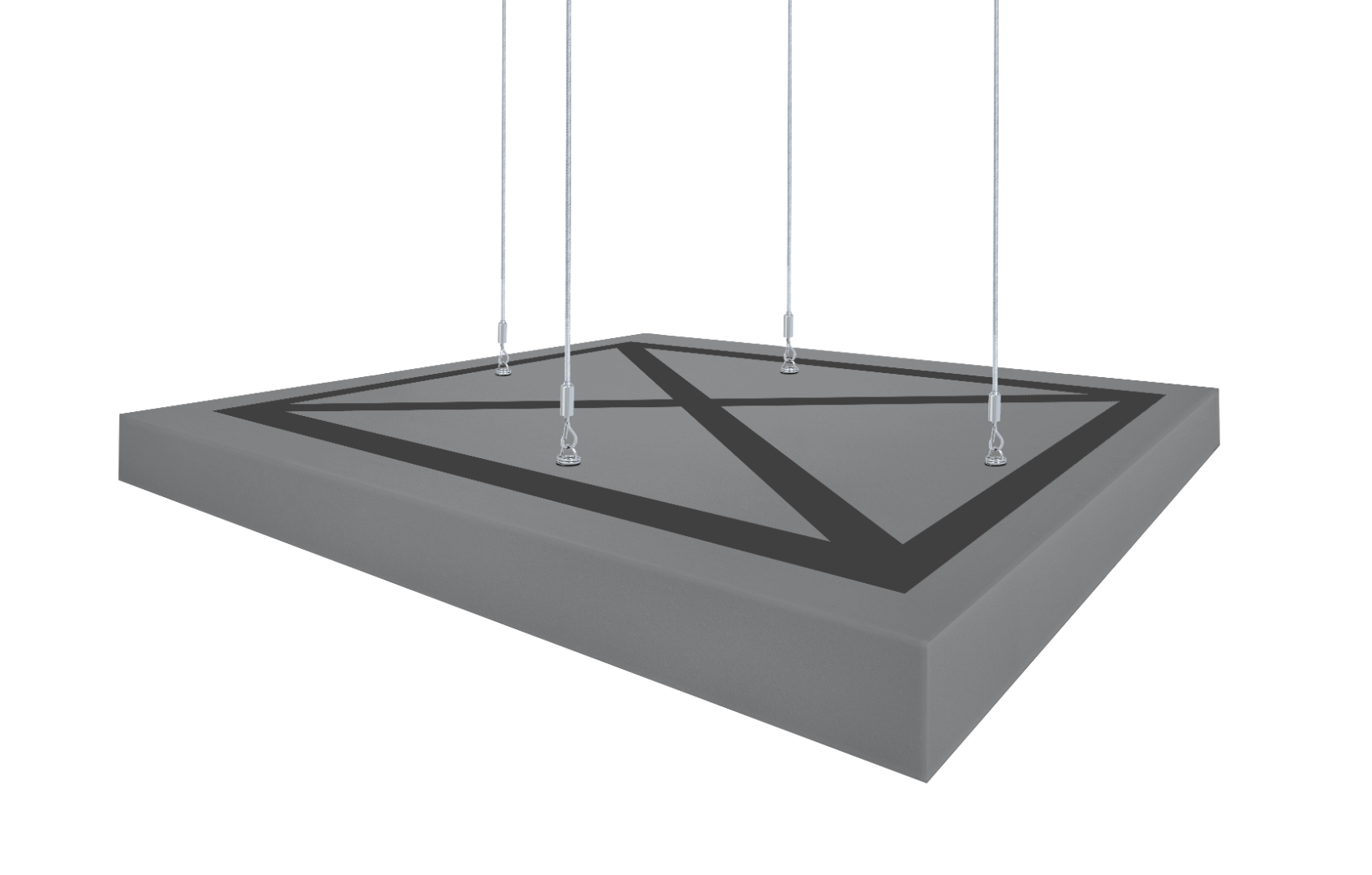

SAB Acoustic Premium Baffle - lightweight fireproof ceiling elements that are installed to improve the acoustics in a room. They are made of foamed melamine and have good sound absorption properties due to their fine-pored structure. Natural colours of panels are light grey or white.
Zakres normy
Skład
- Melamine foam
- Colouring according to RAL chart
- mounting kit
akustyczna
i przechowanie
| Modyfikacja | Prostokąt | Kwadrat | Koło |
|---|---|---|---|
 | | | |
 | |||
Liczba punktów montażowych | 4 / 2 | 4 | 4 |
Rozmiar panelu (dł. x szer.), m * | 1.2x0.6 | 1.2x1.2 | Ø 0.6 / 0.8 / 0.9 |
Grubość, mm | 50 | 50 | 50 |
Kolorowanie | jasnoszary, biały lub według skali RAL | jasnoszary, biały lub według skali RAL | jasnoszary, biały lub według skali RAL |
Klasa bezpieczeństwa pożarowego | КМ1 | КМ1 | КМ1 |
| Sab Acoustic Premium 50 mm Średni współczynnik pochłaniania dźwięku, NRC | 0.95 |
Storage period is 24 months, subject to storage and transportation conditions.
After the warranty period of storage has expired, the products must be checked for compliance with the declared characteristics and, if they comply with the declared characteristics, the period of storage may be extended.
When storing and transporting, the panels are positioned horizontally. Transportation is possible only in one tier; installation on top of other materials is allowed. Before installation, the panels must undergo acclimatization.
Painted panels require careful handling, since painting is carried out only on the top layer - bending of the panels is not allowed. The panels are transferred perpendicular to the horizon.
The change in size of foamed melamine depending on relative air humidity can be up to 4% (at a temperature of 23°C)
- For vertical storage - no more than 4 boxes in a vertical row.
- Do not get the product and packaging wet.
- Avoid contact with hard and sharp objects.
- Do not place panels and boxes on ends and corners.
- Fragile. Don't bend. Don't drop it.
- Install the panels higher than human height.
- Touch only with clean gloves.
- Don't hold it by one edge. Possible fracture.
